Reach Compact

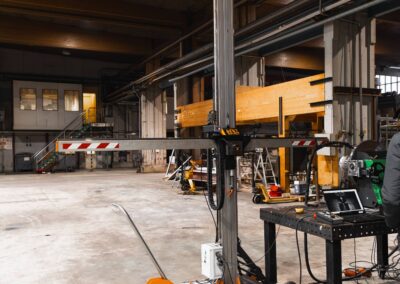

Reach Compact: compact mobile welding boom

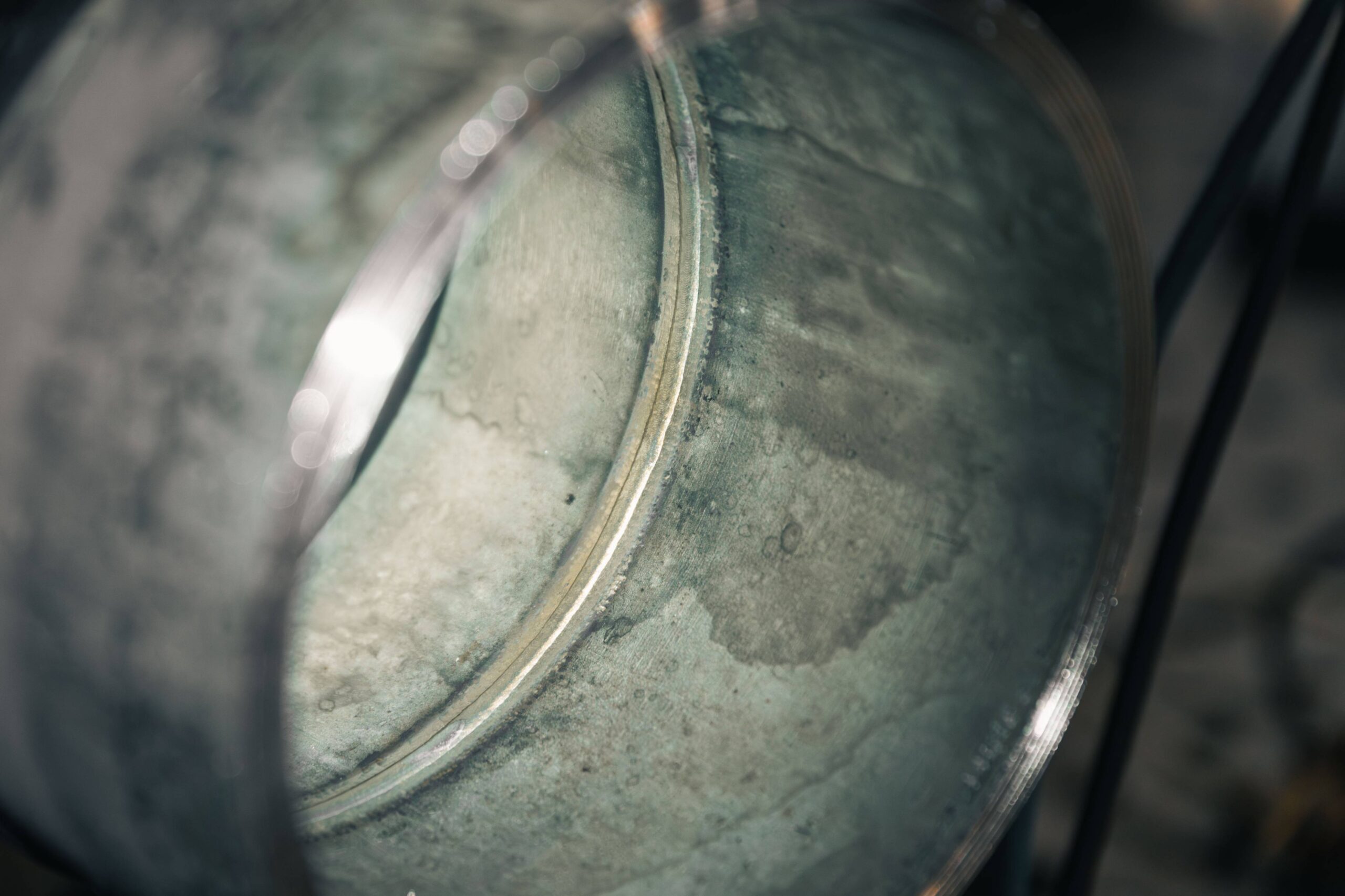

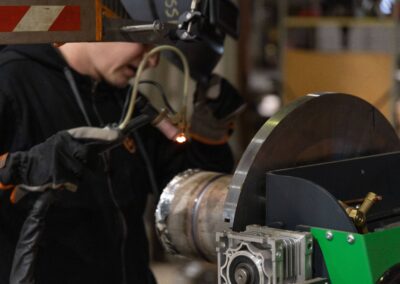

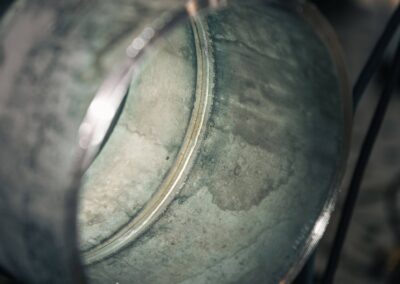

Reach Compact is a small, easily moved welding boom for MIG/MAG, TIG and plasma welding. It is especially suited to welding rotating workpieces together with a welding positioner or welding rotators.
Compact is available without motorised longitudinal travel when the machine is used only for welding rotating workpieces.
Fast, precise positioning
The torch is brought close to the weld with fast manual quick-release movements. Precise positioning is done with remote-controlled electric movements.
Standard equipment
- 150 mm electric up/down movement
- 150 mm electric left/right movement

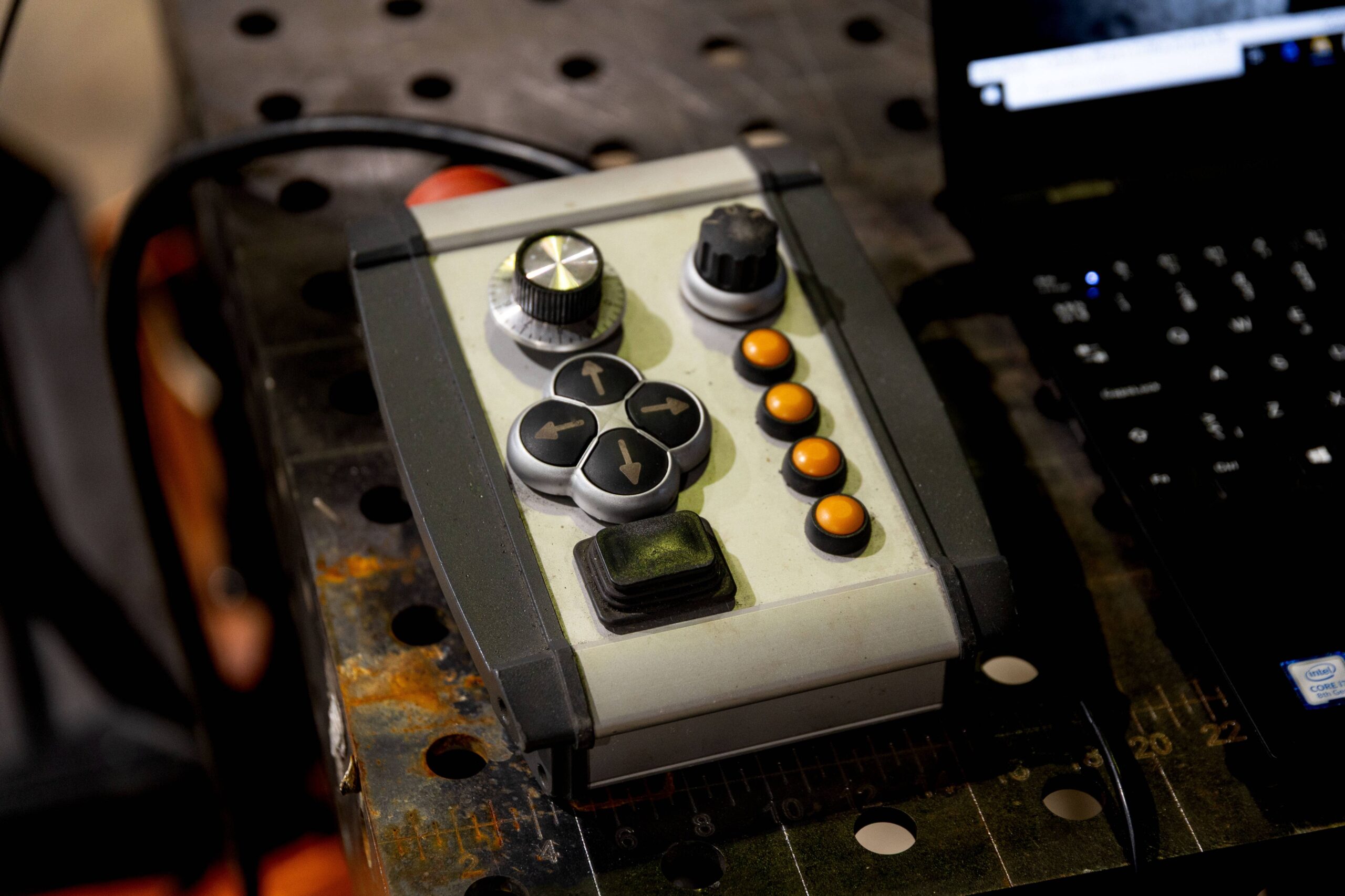

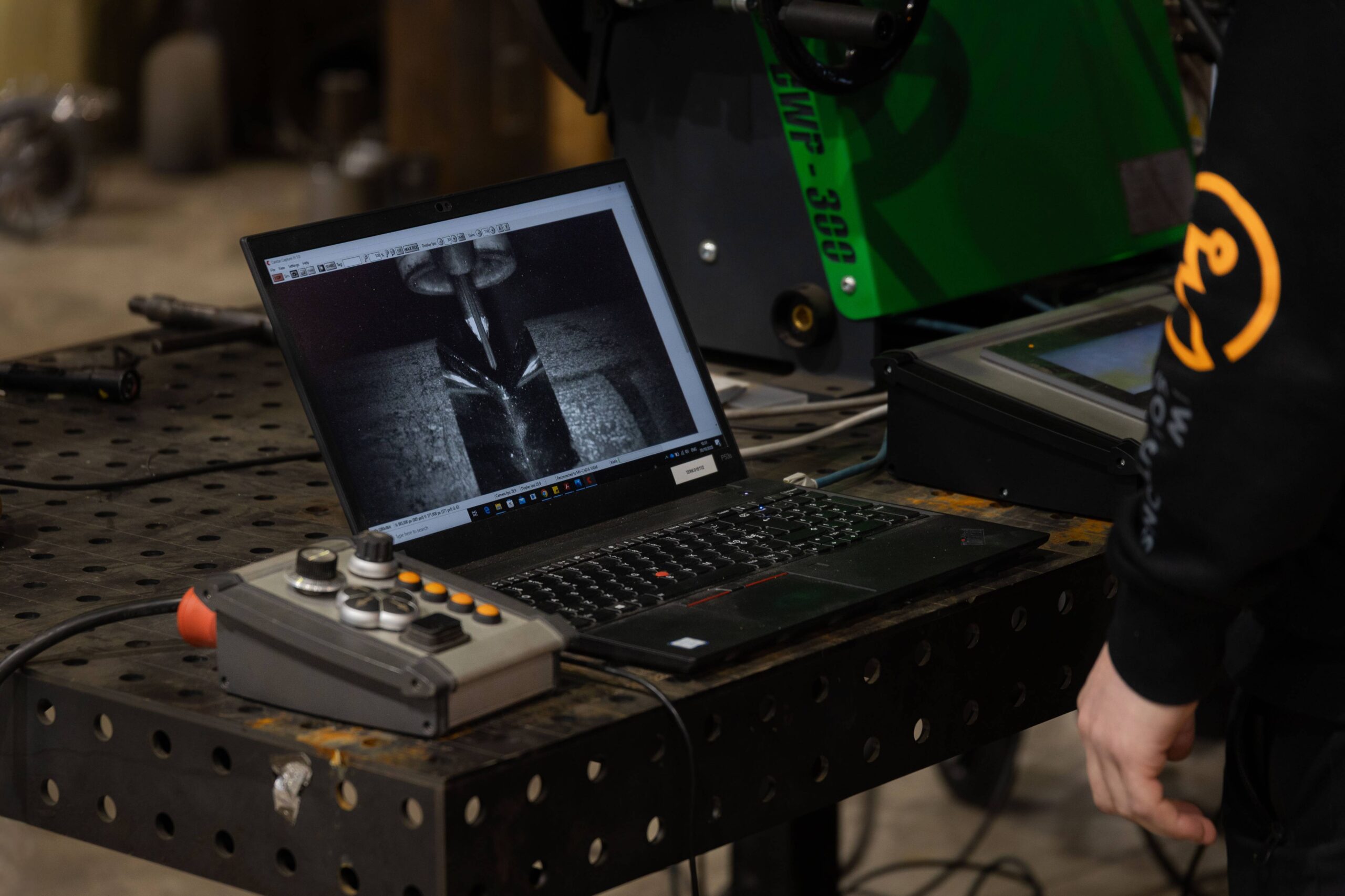

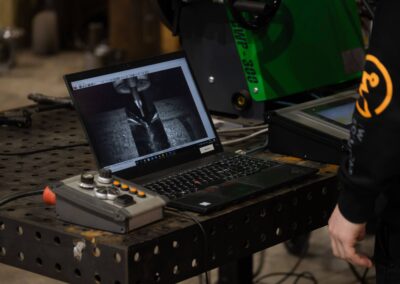

- Remote control of the electric movements
- Fast manual quick-release movements
- Counterbalanced manual height adjustment
- Wheeled base, easy to move by hand
- Adjustable torch mount
Basic technical data
- Manual height adjustment travel: approx. 1,221 mm
- Electric vertical movement: 150 mm
- Electric lateral movement: 150 mm
- Machine weight: approx. 99 kg
- Suitable processes: MIG/MAG, TIG and plasma welding
Accessories
- Motorised longitudinal travel of approx. 914 mm
- Adjustable travel speed
- Travel speed display in mm/min
- AVC height tracking
- Two-axis tactile seam tracking
- Torch oscillation
- PipeMaster control panel
- Welding positioner or welding rotators
- Application-specific torch holders
With motorised longitudinal travel, Reach Compact is suitable not only for rotating workpieces but also for straight longitudinal welds and cladding.
Automatic weld tracking
Tactile seam tracking follows the joint and steers the torch both sideways and up/down. AVC keeps the torch at the correct distance based on the arc voltage.

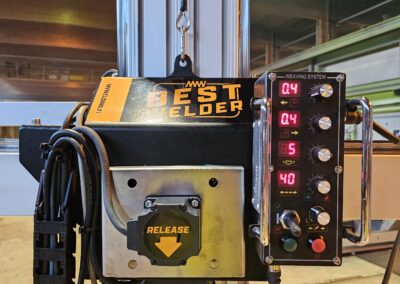

Optional oscillation produces a programmed side-to-side motion during welding.
PipeMaster control panel as an option
Reach Compact can be fitted with the same control panel as PipeMaster. The panel controls the welding boom movements, the rotator and the EWM welding machine.
Welding settings can be saved as named recipes. The control system requires a compatible rotator and EWM welding machine.
